Mainboard Tiemme SY100_IDRO for pellet stoves

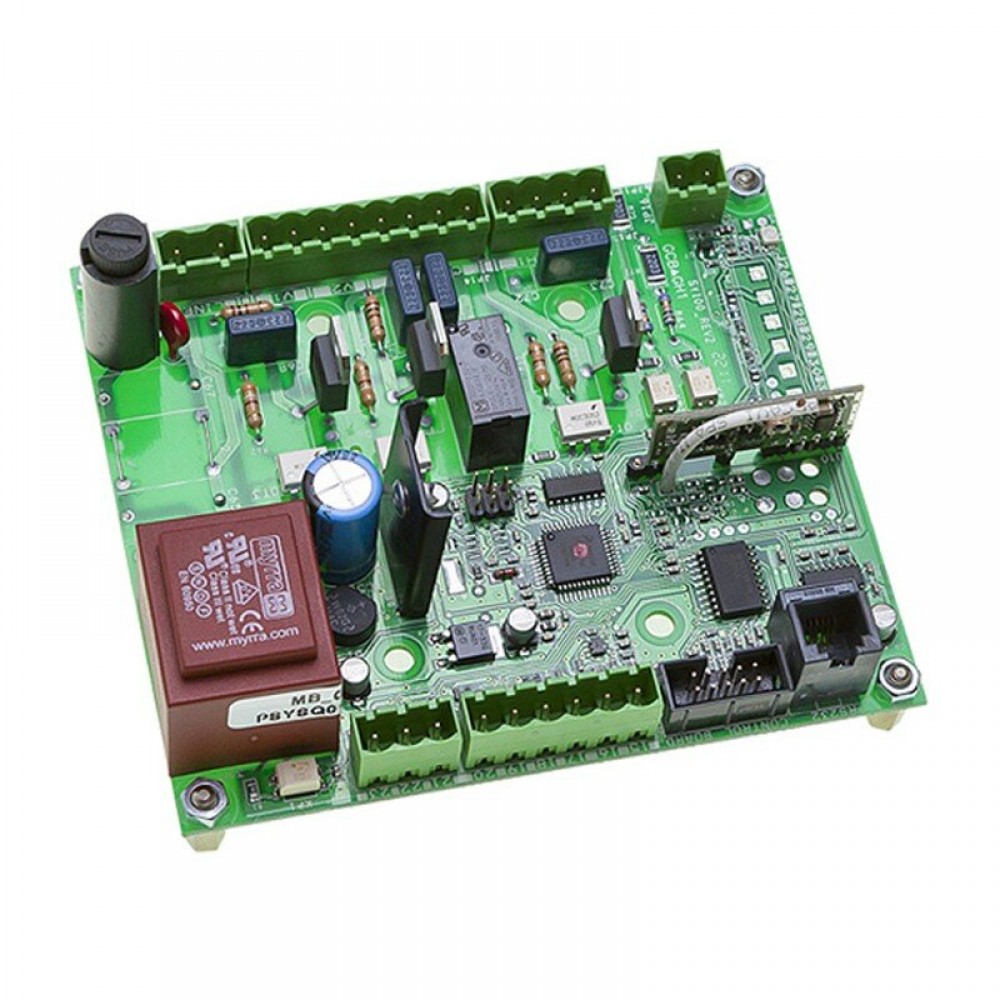

Italian motherboard for pellet stoves.

  • Stock: Nema na skladištu
  • Marka: Tiemme
  • SKU: 16.449.038
€ 195,84
Uključuje PDV
Bez poreza: € 163,20

     Uštedite  2%   bankovnim prijenosom.

PROCIJENJENA ISPORUKA
01.May.2026
DHL Schenker Dachser
Pogledajte Pravila dostave

POVRAT U ROKU OD 365 DANA
​365 danaPogledaj detalje

SIGURNA PLAĆANJA
    Pogledaj detalje

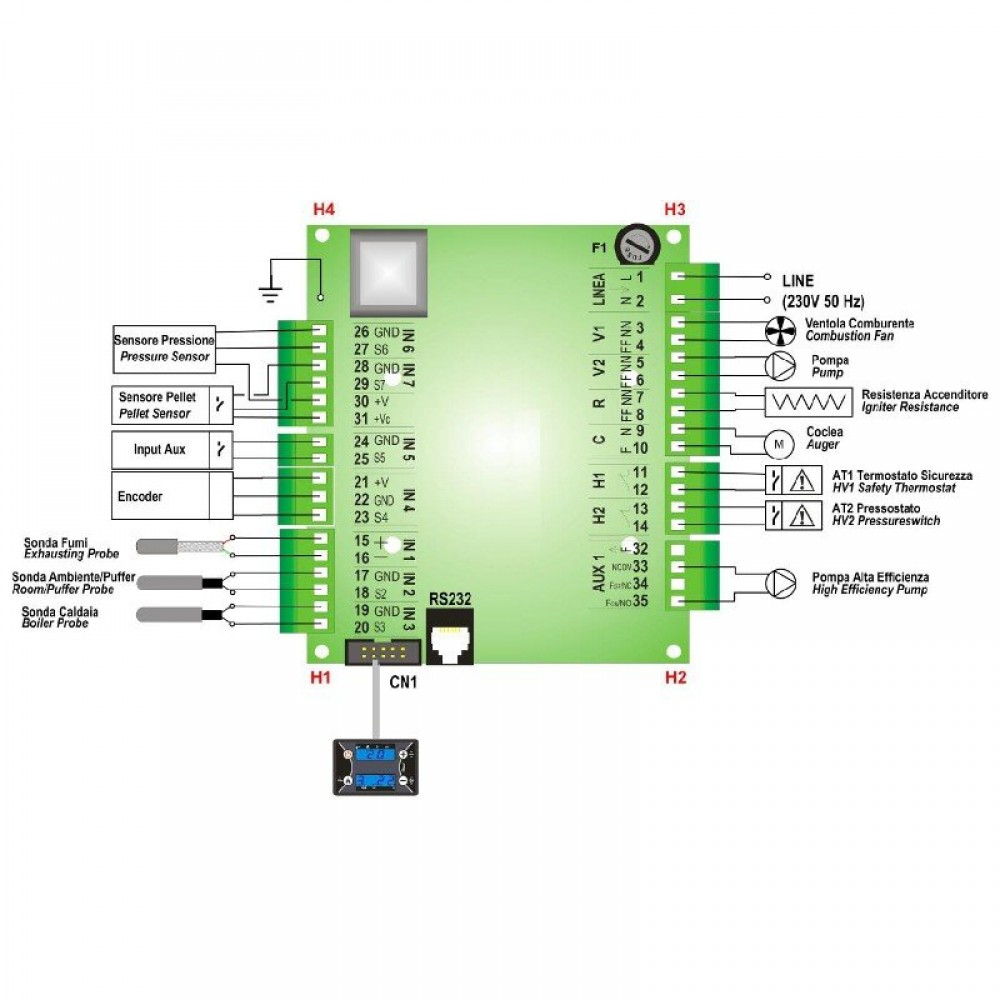

Tiemme SY100 IDRO thermoregulation system is designed to control the operation of heating appliances such as pellet stoves, pellet burners, boilers, fireplaces, etc. Equipped with RS232 communication interface.

It collects data from sensors and uses algorithms in order to control the installed hardware.

The display provides two menus and programming types:

  • user menu to modify parameters of:

         - starting and switching off, operating power output, operating temperature adjustment, manual pellet loading, pellet loading regulation, combustion ventilation, programming of the room temperature.

  • technical menu to operate the advanced parameters for:

         - endless pellet feeder operation, ventilation, combustion, thermostats, timers, output enabling, operating check-up, starting, modulation, pressure switch configuration etc.

Compatible with the following TiEmme Elettronica displays: CP100 - CP110 - CP120 - K100 - LCD100 - LCD200 - EasyTouch 4.

Equipped with remote control receptacle board, which regulates switching on/off and power output.

Characteristics
Težina (kg) 0.5000
Zemlja proizvodnje Italy
Jamstvo 6 months
MPN 14710002
Električno napajanje (V/Hz) 220-240/50-60
Vrsta Mainboard
Kompatibilnost Others
