Buffer Tank Sunsystem, Model P 1000, Capacity 1000L Vessel


Nema na skladištu


Buffer Tank Sunsystem, Model P 1000, Capacity 1000L Vessel
Saving energy and money is achieved using buffer vessels of the Sunsystem P series in the central heating system.

- Stock: Nema na skladištu
- Marka: Sunsystem
- SKU: 01.409.004
€ 1.590,00
Uključuje PDV
Bez poreza: € 1.325,00
Uštedite 5% bankovnim prijenosom.
PROCIJENJENA ISPORUKA
14.May.2025
Pogledajte Pravila dostave


Besplatan povrat
60 danaPogledaj detalje
Primamo uplate
Pogledaj detalje
Accumulates the heat generated by solid fuel boiler, solar heater, heat pump or any other source; recommended for every central heating system.
Ensures the optimum operation and efficiency of a solid fuel boiler, permitting the functioning at nominal power output, even when the heating of the premisses does not require all the heat energy produced thereby.
Produced heat is accumulated and stored inside the buffer tank like hot water and can be used even when the boiler itself has cooled down.
Produced heat is accumulated and stored inside the buffer tank like hot water and can be used even when the boiler itself has cooled down.
Modifications and sizes, in liters:
300, 500, 800, 1000, 1500, 2000, 2500, 3000, 5000
Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:
Class C - capacity from 300 to 5000 Liters;
Product features:
- Removable high efficiency insulation with thickness 100 mm and outer casing of PVC with RAL 9006 color
- Multi-position mounting of temperature sensor
- Primer coated on the outside of the tank
- All threads are internal
- inlet / Outlet connections - at 180 degrees
- Easy installation
- Optional kit for electric heating with nominal power 3kW, 4.5kW, 6kW or 7.5kW

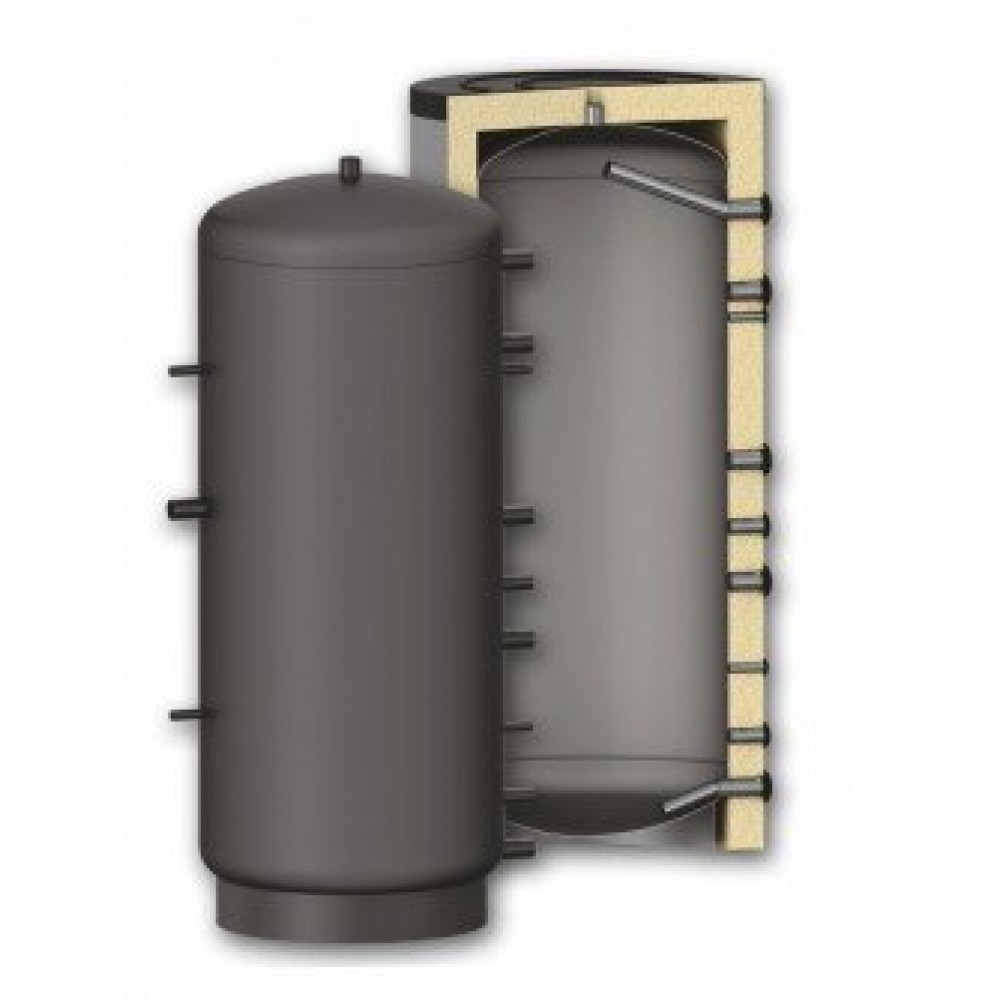

1. Aesthetic PVC jacket with color RAL 9006
2. Primer coated outer surface
3. Removable insulation
4. Water tank of low-carbon steel
Characteristics | |
Težina (kg) | 152.0000 |
Zemlja proizvodnje | Bulgaria |
Visina dimenzija (mm) | 2090 |
Jamstvo | 2 Years |
Certifikacija | CE |
Termometar | Optional |
Razred energetske učinkovitosti | C |
Kapacitet vode/sadržaj (L) | 1000 |
Montaža | Free standing |
Kolut izmjenjivača topline | No heat exchanger |
Visina bez izolacije (mm) | 2040 |
Promjer (mm) | 990 |
Promjer bez izolacije (mm) | 790 |
Minimalni okomiti razmak (mm) | 2075 |
Težina izolacije (kg) | 18 |
Maksimalna radna temperatura spremnika (°C) | 95 |
Navlaka senzora A (mm) | G 1/2'' / 580 |
Električni grijač B (mm) | G 1 1/2'' / 1130 |
Navlaka senzora C (mm) | G 1/2'' / 1500 |
Navlaka za zrak D (mm) | G 1 1/2'' / 2040 |
Toplinski nosač kotla E (mm) | G 1 1/2'' / 1742 |
Navlaka senzora G (mm) | G 1 1/2'' / 1450 |
Toplinski nosač kotla J (mm) | G 1 1/2'' / 1060 |
Ulaz toplinskog nosača L (mm) | G 1'' / 880 |
Dimenzije cijevi kotla M (mm) | G 1 1/2'' / 730 |
Promjer senzorske ovojnice N (mm) | G 1/2'' / 495 |
Dimenzije izlaza toplinskog nosača O (mm) | G 1'' / 310 |
Dimenzije ulaza toplinskog nosača F (mm) | G 1 1/2'' / 1520 |
Dimenzije izlaza toplinskog nosača kotla P (mm) | G 1 1/2'' / 150 |
Radni tlak spremnika (bar) | 3 |
