Buffer Tank Sunsystem, Model P 800, Capacity 800L Vessel

Saving energy and money is achieved using buffer vessels of the Sunsystem P series in the central heating system.

  • Stock: Na lageru
  • Marka: Sunsystem
  • SKU: 01.409.003
€ 1.549,00
Uključuje PDV
Bez poreza: € 1.290,83

     Uštedite  5%   bankovnim prijenosom.

PROCIJENJENA ISPORUKA
20.Jun.2025
DHL Schenker
Pogledajte Pravila dostave

Besplatan povrat
​60 danaPogledaj detalje

Primamo uplate
    Pogledaj detalje

Accumulates the heat generated by solid fuel boiler, solar heater, heat pump or any other source; recommended for every central heating system.
Ensures the optimum operation and efficiency of a solid fuel boiler, permitting the functioning at nominal power output, even when the heating of the premisses does not require all the heat energy produced thereby.
Produced heat is accumulated and stored inside the buffer tank like hot water and can be used even when the boiler itself has cooled down.


Modifications and sizes, in liters:
300, 500, 800, 1000, 1500, 2000, 2500, 3000, 5000

Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:


Class C - capacity from 300 to 5000 Liters;

Product  features:

  • Removable high efficiency insulation with thickness 100 mm and outer casing of PVC with RAL 9006 color
  • Multi-position mounting of temperature sensor
  • Primer coated on the outside of the tank
  • All threads are internal
  • inlet / Outlet connections - at 180 degrees
  • Easy installation
  • Optional kit for electric heating with nominal power  3kW, 4.5kW, 6kW or 7.5kW

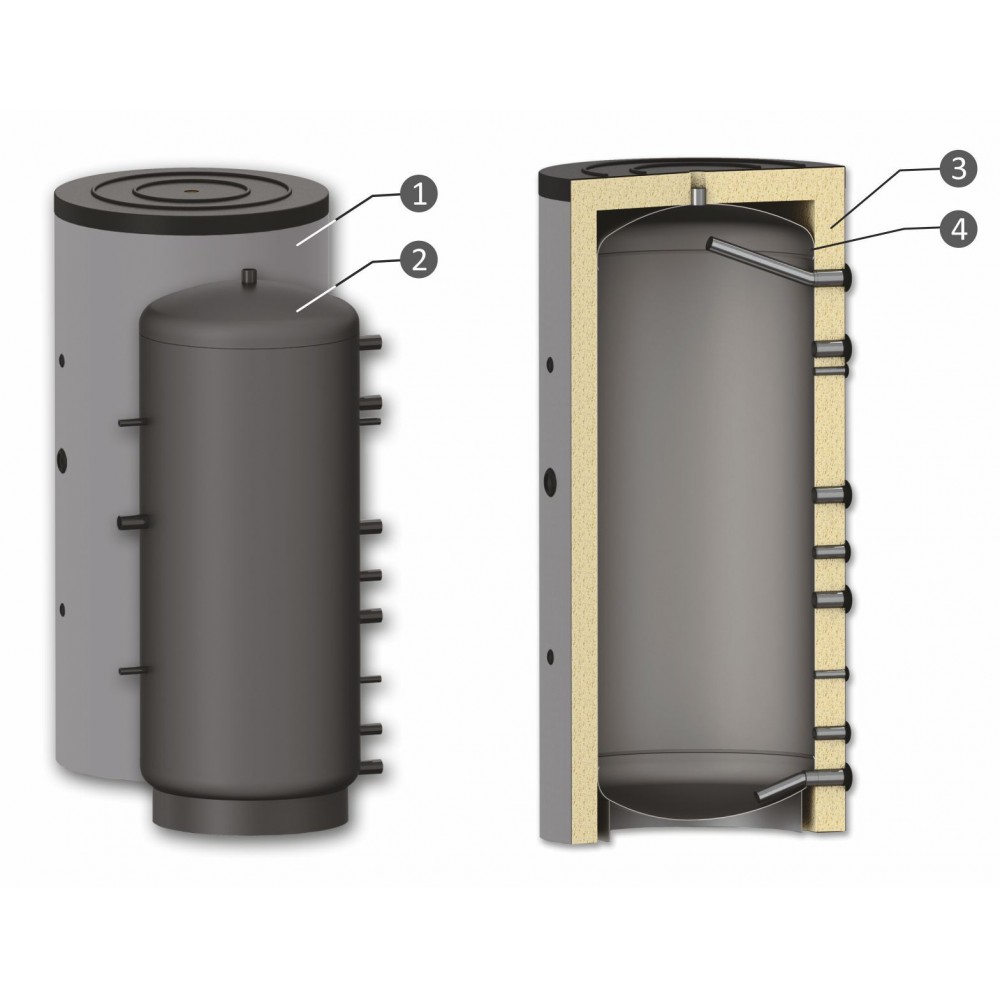

1. Aesthetic PVC jacket with color RAL 9006
2. Primer coated outer surface
3. Removable insulation
4. Water tank of low-carbon steel





Characteristics
Težina (kg) 126.0000
Zemlja proizvodnje Bulgaria
Visina dimenzija (mm) 1910
Jamstvo 2 Years
Certifikacija CE
Termometar Optional
Razred energetske učinkovitosti C
Kapacitet vode/sadržaj (L) 800
Montaža Free standing
Kolut izmjenjivača topline No heat exchanger
Visina bez izolacije (mm) 1860
Promjer (mm) 990
Promjer bez izolacije (mm) 790
Minimalni okomiti razmak (mm) 1900
Težina izolacije (kg) 16.4
Maksimalna radna temperatura spremnika (°C) 95

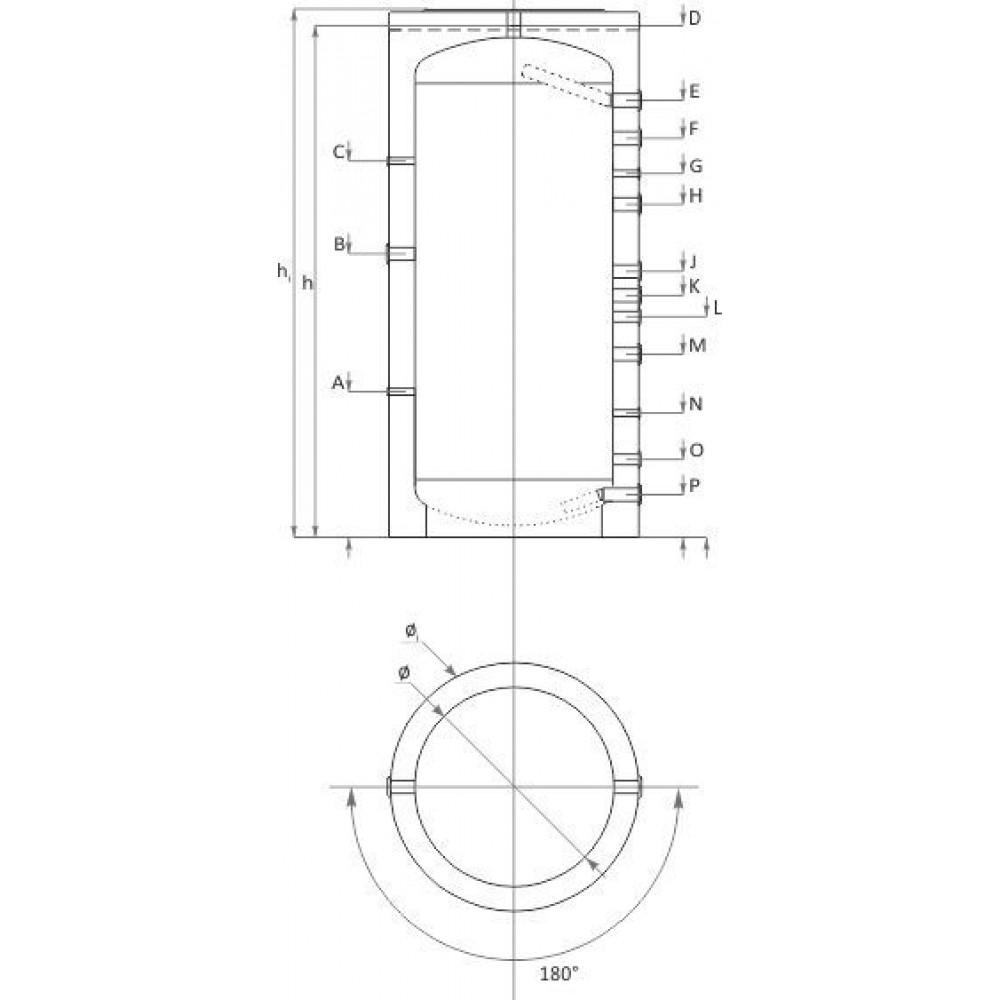

Navlaka senzora A (mm) G 1/2'' / 570
Električni grijač B (mm) G 1 1/2'' / 920
Navlaka senzora C (mm) G 1/2'' / 1290
Navlaka za zrak D (mm) G 1 1/2'' / 1860
Toplinski nosač kotla E (mm) G 1 1/2'' / 1573
Navlaka senzora G (mm) G 1/2'' / 1290
Toplinski nosač kotla J (mm) G 1 1/2'' / 980
Ulaz toplinskog nosača L (mm) G 1'' / 820
Dimenzije cijevi kotla M (mm) G 1 1/2'' / 670
Promjer senzorske ovojnice N (mm) G 1/2'' / 465
Dimenzije izlaza toplinskog nosača O (mm) G 1'' / 310
Dimenzije ulaza toplinskog nosača F (mm) G 1 1/2'' / 1390
Dimenzije izlaza toplinskog nosača kotla P (mm) G 1 1/2'' / 170
Radni tlak spremnika (bar) 3
