Buffer Tank Sunsystem, Model P 1500, Capacity 1500L, Industrial Vessel

Buffer Tank Sunsystem, Model P 1500, Capacity 1500L, Industrial Vessel | Buffer Tanks | DHW Cylinders & Buffers |
Buffer Tank Sunsystem, Model P 1500, Capacity 1500L, Industrial Vessel | Buffer Tanks | DHW Cylinders & Buffers |
Buffer Tank Sunsystem, Model P 1500, Capacity 1500L, Industrial Vessel | Buffer Tanks | DHW Cylinders & Buffers |
Buffer Tank Sunsystem, Model P 1500, Capacity 1500L, Industrial Vessel | Buffer Tanks | DHW Cylinders & Buffers |
Buffer Tank Sunsystem, Model P 1500, Capacity 1500L, Industrial Vessel

Saving energy and money is achieved using buffer vessels of the Sunsystem P series in the central heating system.

  • Stock: Na lageru
  • Marka: Sunsystem
  • SKU: 01.409.005
€ 1.549,10
Uključuje PDV
Bez poreza: € 1.290,92

     Uštedite  5%   bankovnim prijenosom.

PROCIJENJENA ISPORUKA
20.Jun.2025
DHL Schenker
Pogledajte Pravila dostave

Besplatan povrat
​60 danaPogledaj detalje

Primamo uplate
    Pogledaj detalje

Accumulates the heat generated by solid fuel boiler, solar heater, heat pump or any other source; recommended for every central heating system.
Ensures the optimum operation and efficiency of a solid fuel boiler, permitting the functioning at nominal power output, even when the heating of the premisses does not require all the heat energy produced thereby.
Produced heat is accumulated and stored inside the buffer tank like hot water and can be used even when the boiler itself has cooled down.


Modifications and sizes, in liters:
300, 500, 800, 1000, 1500, 2000, 2500, 3000, 5000


Product  features:

  • Removable high efficiency insulation with thickness 100 mm and outer casing of PVC with RAL 9006 color
  • Multi-position mounting of temperature sensor
  • Primer coated on the outside of the tank
  • All threads are internal
  • inlet / Outlet connections - at 180 degrees
  • Easy installation
  • Optional kit for electric heating with nominal power  3kW, 4.5kW, 6kW or 7.5kW

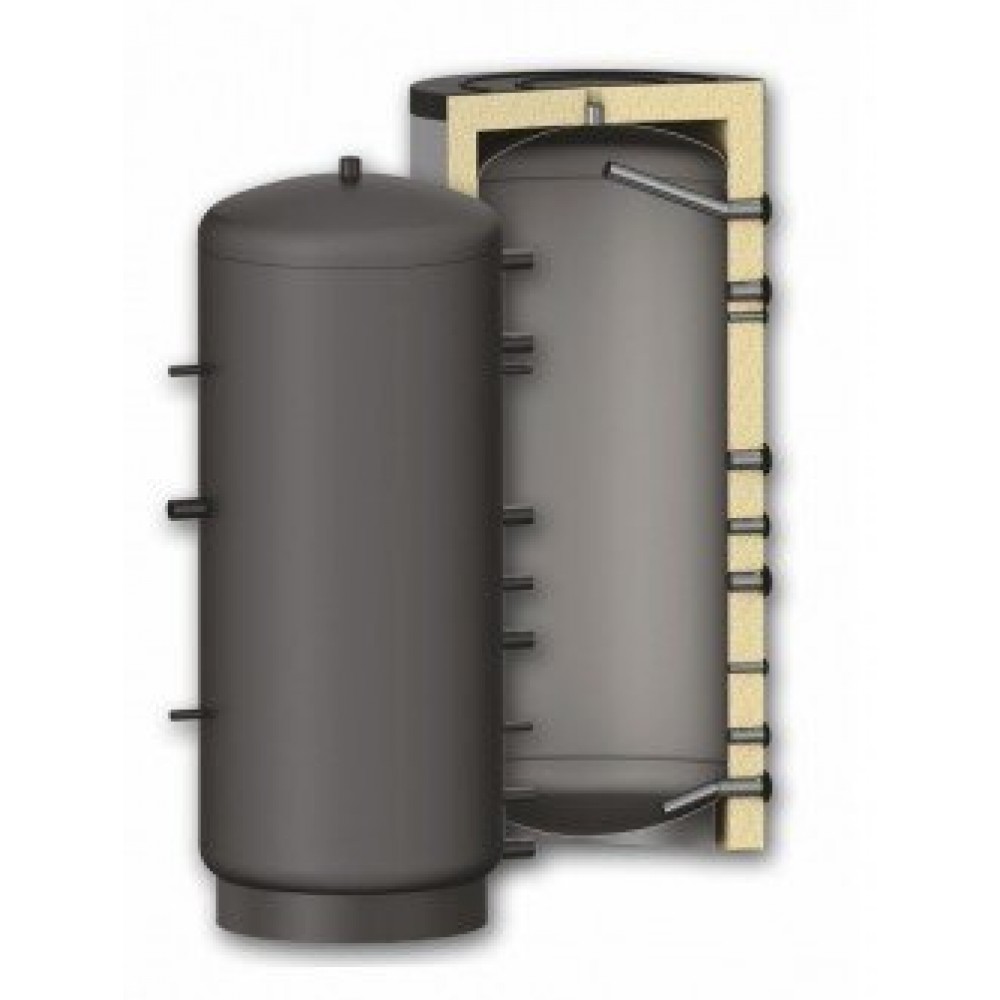

1. Aesthetic PVC jacket with color RAL 9006
2. Primer coated outer surface
3. Removable insulation
4. Water tank of low-carbon steel









Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:


Class E - capacity from 300 to 500 Liters;
Class Е - capacity from 800 to 1000 Liters;







Characteristics
Težina (kg) 274.0000
Zemlja proizvodnje Bulgaria
Visina dimenzija (mm) 2220
Jamstvo 2 Years
Termometar Optional
Kapacitet vode/sadržaj (L) 1500
Montaža Free standing
Kolut izmjenjivača topline No heat exchanger
Visina bez izolacije (mm) 2170
Promjer (mm) 1200
Promjer bez izolacije (mm) 1000
Minimalni okomiti razmak (mm) 2220
Težina izolacije (kg) 23.2

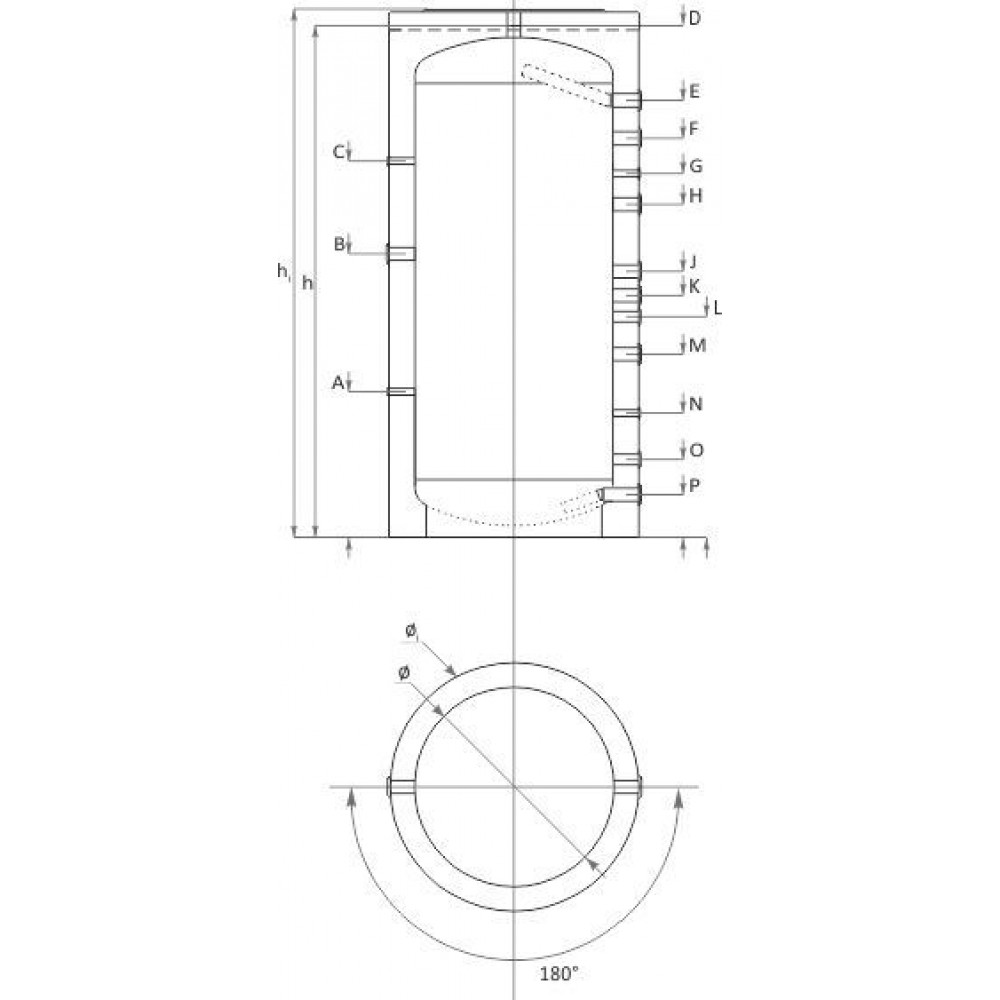

Električni grijač B (mm) G 1 1/2'' / 1130
Navlaka senzora C (mm) G 1/2'' / 1500
Navlaka za zrak D (mm) G 1 1/2'' / 2170
Toplinski nosač kotla E (mm) G 1 1/2'' / 1808
Navlaka senzora G (mm) G 1/2'' / 1525
Toplinski nosač kotla H (mm) G 1 1/2'' / 1305
Toplinski nosač kotla J (mm) G 1 1/2'' / 1085
Ulaz toplinskog nosača L (mm) G 1'' / 895
Dimenzije cijevi kotla M (mm) G 1 1/2'' / 765
Promjer senzorske ovojnice N (mm) G 1/2'' / 520
Dimenzije izlaza toplinskog nosača O (mm) G 1'' / 375
Maksimalna radna temperatura cijevi (°C) 95
Dimenzije ulaza toplinskog nosača F (mm) G 1 1/2'' / 1635
Dimenzije izlaza toplinskog nosača kotla P (mm) G 1 1/2'' / 235
Radni tlak spremnika (bar) 3
Dodatna ovojnica K (mm) G 1/2'' / 975
